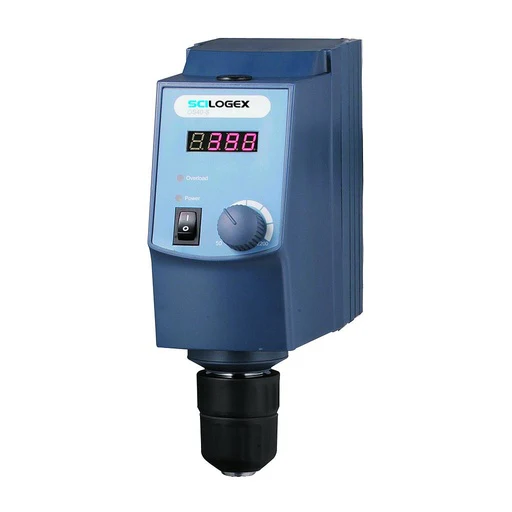

SCILOGEX SCI40-S (40L) LED Digital Overhead Stirrer 50-2200rpm

SCILOGEX SCI40-S Overhead LED Digital Stirrer, 40L Capacity, 100-220V 50/60Hz, US Plug (including steel cross-stirrer Part# 1890007, stand sold separately)

Product Features

A wide range of speed from 50 to 2200rpm
Brushless DC motor for long life and maintenance free
Analog speed controls displayed on the LED display for monitoring actual speed
High torque for viscous medium stirring
Over torque protection automatically stops the motor
Safety circuits allow for safe stop function in anti-stall or overload condition
A through-shaft design allows for easy adjustment of the impeller position
In the event of power loss, the stirrer will resume stirring at the preset speed when the power returns
Pass through stirrer rods accepted
cTUVus approved for UL and CSA
2 YEAR WARRANTY

Product Specifications

Maximum stirring capacity	40L
Maximum torque	60Ncm
Viscosity maximum	50000mPas
Speed range	50-2200rpm
Speed display accuracy	± 50rpm
Speed display resolution	± 10rpm
Chuck diameter range	0.5-10mm
Dimensions	3.3W x 8.7H x 7.3D in (83W x.220H x 186D mm)
Motor rating input	120W
Motor rating output	100W
Weight	5.5lbs
Motor type	brushless DC motor
Voltage/Power	100-220V, 50/60 Hz/ 130W
Speed/Torque display	LED
Overload protection display	LED lights
Protection class	IP42
Permissible ambient temperature and humidity	5-40°C, 80%RH
