Cold Trap 2" Stainless Steel
Cold Trap 2" Stainless Steel

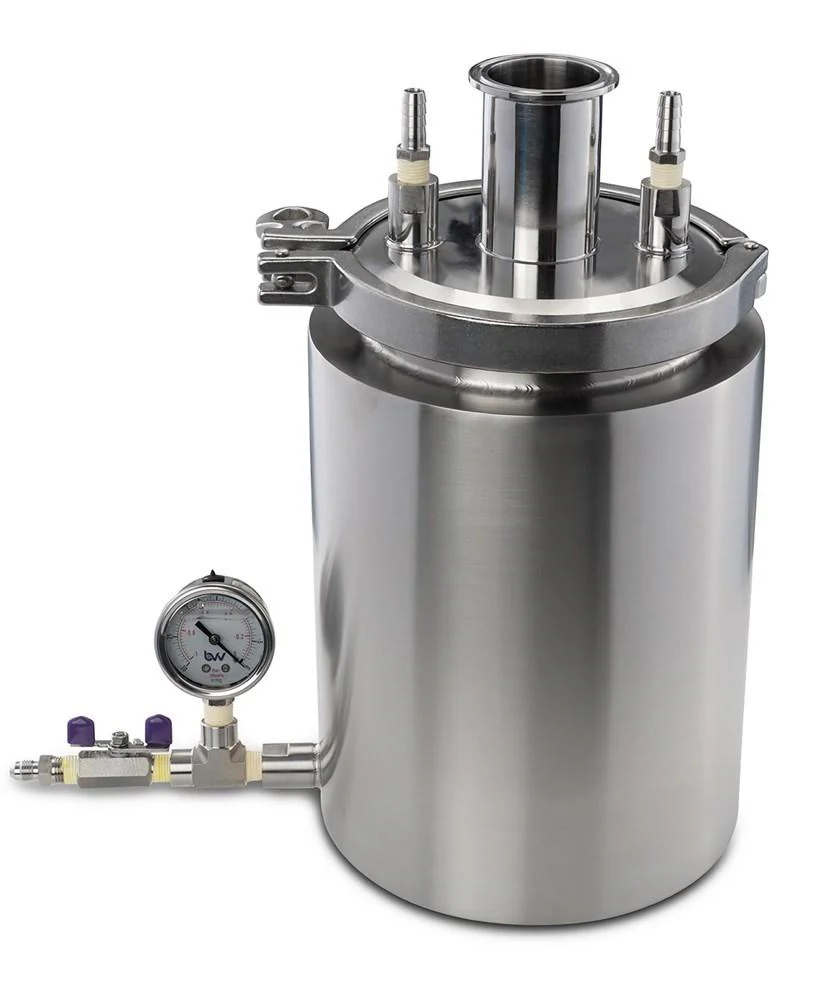

This Stainless Steel Cold is designed and intended for use with the Polyscience IP60 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 2" Diameter Center opening for the IP60. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.
| Specifications | |
| Material | 304 Stainless Steel |
| Temperature Rating | -200 to 200°C |
| Ultimate Vacuum | <100millitorr / microns |
| Cold Finger Internal Dimensions | 1.85" x 11.75" (Fits Polyscience IP60) |
| Trap Internal Dimensions | 5.85" x 10" |
| Outside Dimensions | 8" x 14" x 15" (Includes jacket gauge and valve hardware) |
| Weight | 28LBS |
Cold Trap 2" Stainless Steel
This Stainless Steel Cold is designed and intended for use with the Polyscience IP60 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 2" Diameter Center opening for the IP60. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.
| Specifications | |
| Material | 304 Stainless Steel |
| Temperature Rating | -200 to 200°C |
| Ultimate Vacuum | <100millitorr / microns |
| Cold Finger Internal Dimensions | 1.85" x 11.75" (Fits Polyscience IP60) |
| Trap Internal Dimensions | 5.85" x 10" |
| Outside Dimensions | 8" x 14" x 15" (Includes jacket gauge and valve hardware) |
| Weight | 28LBS |
Original: $538.00
-65%$538.00
$188.30Description
Cold Trap 2" Stainless Steel
This Stainless Steel Cold is designed and intended for use with the Polyscience IP60 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 2" Diameter Center opening for the IP60. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.
| Specifications | |
| Material | 304 Stainless Steel |
| Temperature Rating | -200 to 200°C |
| Ultimate Vacuum | <100millitorr / microns |
| Cold Finger Internal Dimensions | 1.85" x 11.75" (Fits Polyscience IP60) |
| Trap Internal Dimensions | 5.85" x 10" |
| Outside Dimensions | 8" x 14" x 15" (Includes jacket gauge and valve hardware) |
| Weight | 28LBS |
