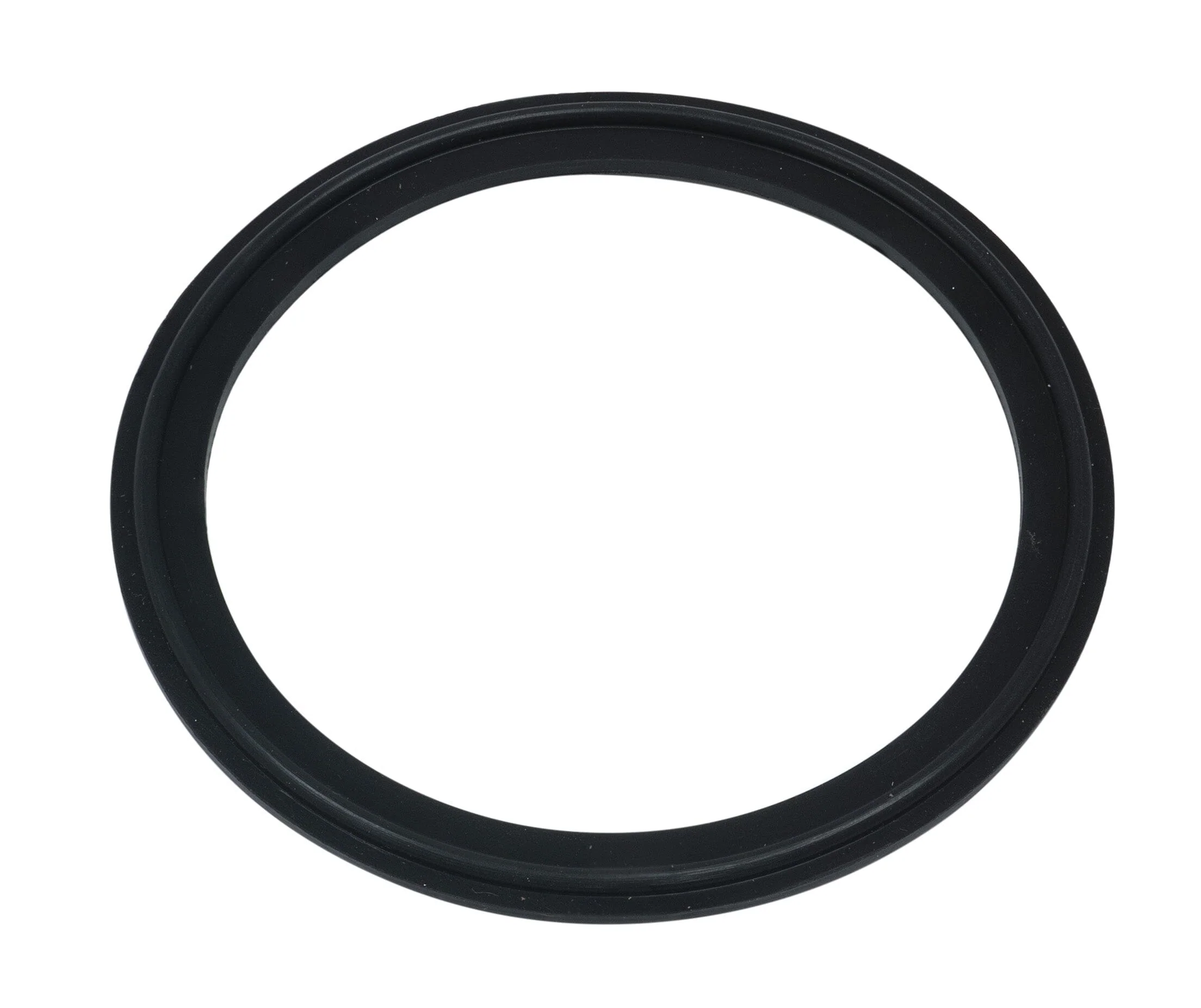

FKM Viton Tri-Clamp Gaskets

Fluoroelastomer (FKM) gaskets are a great option for using higher temperatures in a closed-loop system or other steps of the extraction process including filtration and decarbing. FKM offers an excellent chemical compatibility with numerous solvents.

FKM Gaskets offer a higher temperature rating and better chemical compatibility than Buna rubber.

 Key Features:

• High-temperature range
• Better compressibility and springiness
• Excellent resistance to butane and propane
• Better tear resistance
• Better chemical resistance
• USP Certified
• FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food.
• FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products.

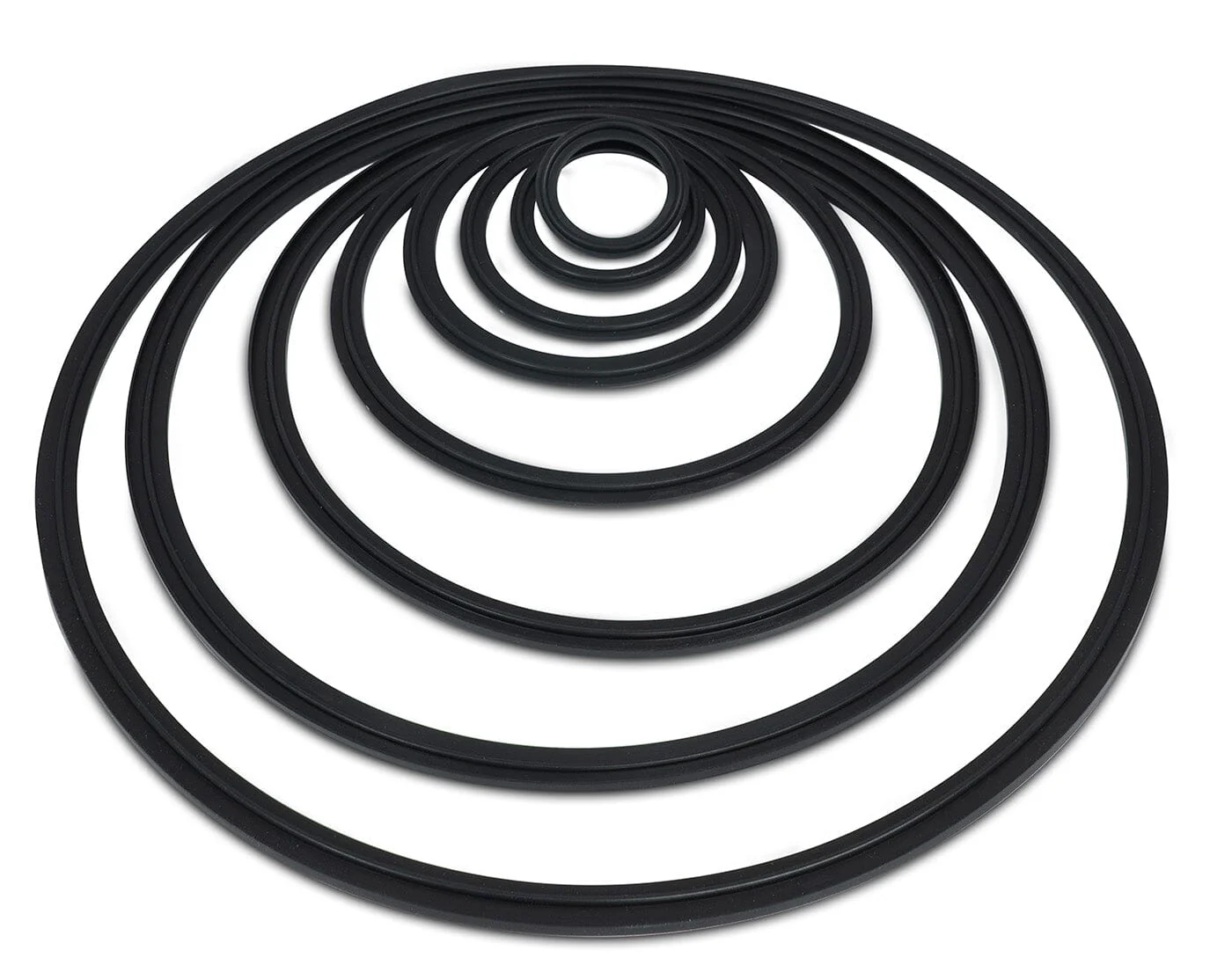

Sizes Available:

• 1.5"
• 2"
• 3"
• 4"
• 6"
• 8" - easy on flanged
• 10" - easy on flanged
• 12" - easy on flanged





Technical Specifications:
Material:	Viton (FKM)
Color:	Black
Connection Type:	Tri-Clamps
Conformance:	FDA Compliant / Meets 3A Standards
Thermal Properties:	-Low Temperature Range	-49°F
	-Minimum For Continuous Use (Static)	-15°F
	-Brittle Point	-49°F
	-High Temperature Range	+400°F
	-Maximum for Continuous Use (Static)	+400°F
Gas Permeability:	Excellent



Chemical Compatibility:
Butane	A - Excellent
Propane (liquified)	A - Excellent
Alcohols:	-Amyl	A - Excellent
	-Benzyl	A - Excellent
	-Butyl	A - Excellent
	-Diacetone	D - Severe Effect
	-Ethyl	A - Excellent
	-Hexyl	C - Fair
	-Isobutyl	B - Good
	-Isopropyl	A - Excellent
	-Isopropyl	A - Excellent
	-Methyl	C - Fair
	-Octyl	B - Good
	-Propyl	A - Excellent



BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
